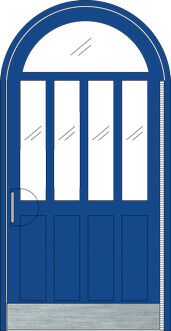

  • MIL 128
  • MIL 129
  • MIL 130
  • Features
  • Specifications
  • PDF Downloads

Features

  • All doors to be manufactured from 2mm thick mild steel Jansen sections. All door joints to be welded and ground to a smooth finish. Jansen sections to be shot blasted, hot zinc sprayed and polyester powder coated textured finish, to any BS or RAL No (All Metallic and certain silver paints at extra cost).
  • Can provide FD60 door sets on request (60 minute fire integrity)
  • Can provide Secured By Design door sets on request
  • Complies with Part M regulations for wheelchair access
  • Custom designs on request

Specifications

Sizes:
  • Any size made to order
Ironmongery:
  • 12mm Anti-nip stainless steel continuous hinge
  • Stainless steel pull handle 225x22mm
  • Stainless steel push plate internal face
Alternative Frames:
  • 80x40x2mm stainless steel hollow section
  • 100x50x2mm stainless steel hollow section
Alternative Glazing:
  • Pyroshield georgian wire glass
  • Laminated glass
  • Obscure glass
  • Double glazed sealed unit
  • FD 30 and FD 60 Glazing
Options:
  • Magnalock housing to be manufactured from 60x40x2mm (for M32 magnets) or 100x50x2mm (for M82 magnets) stainless steel hollow section fixed with security screws
  • 2-No Magna Locks (Securitron M32 and M32C)
  • OR
  • If Secured By Design is required (Tested and Certificated)
    2-No Magna Locks (Securitron M82 and M82C)
  • RX100 low level threshold
  • Fanlights and sidelights
Finishes:
  • Powder coated
  • Stainless Steel is available

PDF Downloads

Please Note

All/any electrical equipment to be disconnected and connected by others. Electrical equipment supply and connected by others.
